Available in 1", 1 1/2", or 2" depending on size of trimming waste being removed and collected.  Each of our patented funnel assemblies to fit close to and surround the trimming knives with vacuum which captures dust and lint as well as the trimmed waste.

** FOR A CLOSE UP OF PICTURES CLICK ON PHOTO TO ENLARGE**


Machine Mounted Snap-Out
Funnel Assembly

Machine Mounted Swing-Away
Funnel Assembly

Funnel assemblies mount directly to the machine casting using existing screw holes, or directly to the tabletop and swing-away or snap-put to allow machine maintenance.

Table-Mounted Snap-Out
Funnel Assembly



Table Mounted Swing-Away
Funnel Assembly

Funnel style is determined by machine mounting method.  Snap out style funnels for semi-submerged and top mounted machines or Swing-away funnels for fully-submerged mounted machines.

TBV-000-390

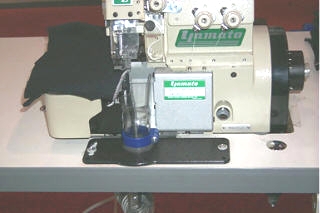

Multi-use 1 1/2" Funnel for top mounted and semi-submerged mounted overlock/safety-stitch machines.

Click on photo to see
TBV-000-390

TBV-000-490

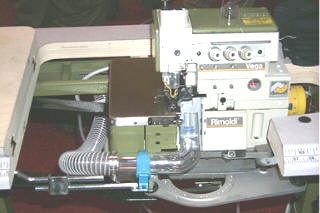

Multi-use 1 1/2" funnel for
fully-submerged mounted
overlock/safety-stitch machines.

Click on photo to see
TBV-000-490

Single Needle Lockstitch

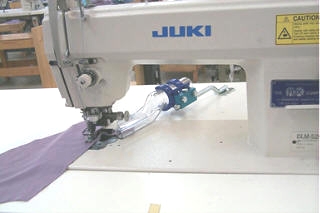

TBV-000-290 multi-use 1 1/2" funnel assembly designed for all makes and models of single needle lockstitch machines with verticle fabric edge cutting knives.  Installs on table top behind machine head. (Click on photo for a better view of TBV-000-290).

For a complete Templex Waste Removal System Click Here
(Select A System)
